Large GTEM (EMC 5311) with supporting test equipment offers manufacturers a compact and efficient method to undertake in-house radiated emissions and radiated immunity pre-compliance testing.
GTEM measurements correlate well to those made in an anechoic chamber or an open area test site (OATS).
The EMCO 5311 GTEM supports a recommended maximum EUT size of 73cm x 73cm x 73cm (emissions) and 55cm x 82cm x 44cm (immunity).
Included equipment:
Radiated Emissions:
- EMCO 5311 GTEM
- Boss manipulator + controller
- Spectrum analyzer
- Computer with software
Conducted Emissions:
- LISN (EMCO 3810/2) 9 kHz – 30 MHz 10A
- Computer with software
Radiated Immunity:
- Signal generator (HP 8657A) 100 kHz – 1 GHz
- Ophir amplifier (5039) 20W 20 MHz – 1 GHz
Conducted Immunity:

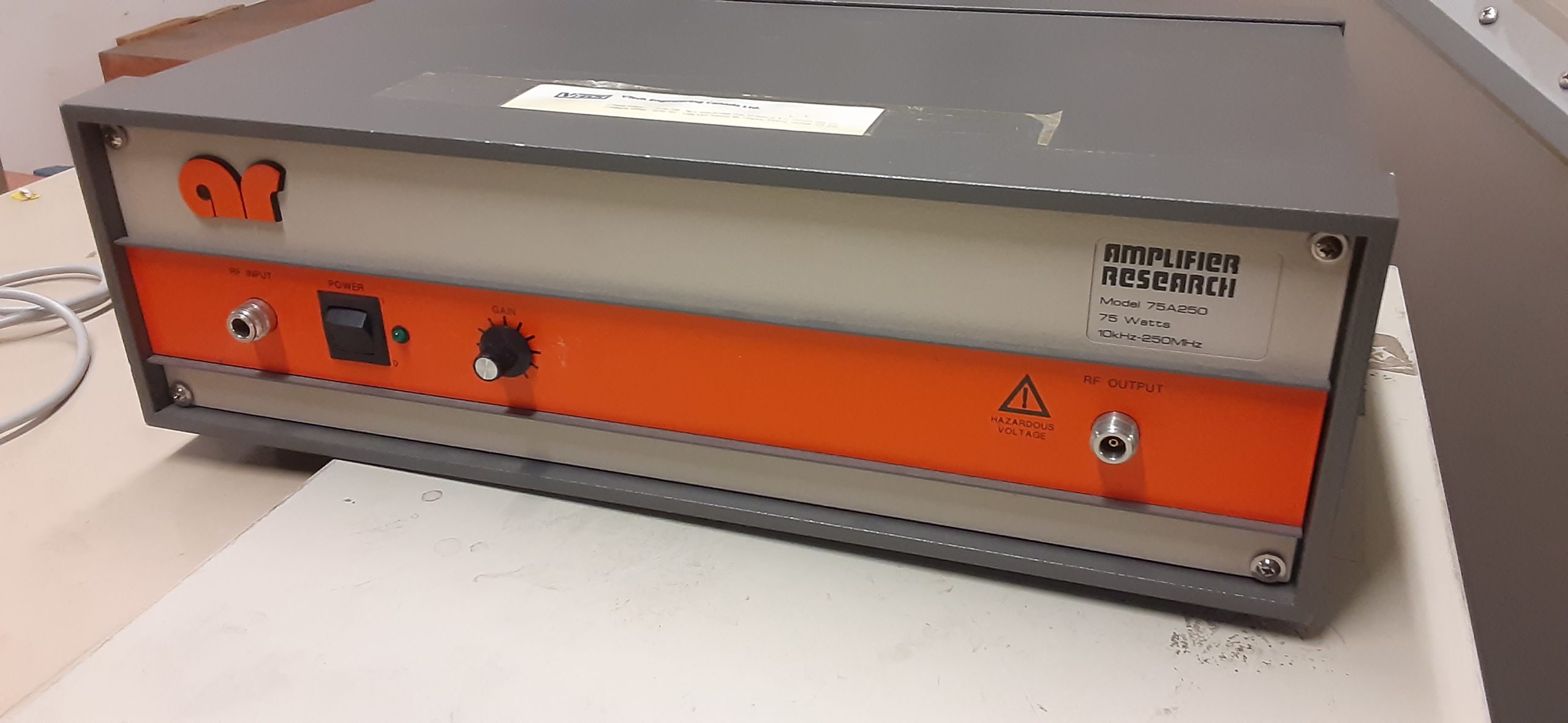

- Amplifier Research amp (75W250) 75W 10 kHz – 250 MHz
- BCI probe (Solar Electronics 9144-1N) 100A 200 kHz – 100 MHz
Verification:
- Comb generator/Reference source
- Isotropic field probe
Contact [email protected] for a quote.
